- Copper tube/Aluminum Fin coils (12 condenser)
- Molded compressor plug
- Supplemental electric heat provides 100% efficient heating
- R-410A HFC refrigerant
- Complete factory charged, wired and run tested
- Scroll compressors with internal line break overload and high-pressure protection
- Single stage compressor on B072 and B085 models
- Two stage compressor on B090 – B150 models
- Convertible airflow
- TXV refrigerant metering system on each circuit (except on B072 and B085)
- High Pressure and Low Pressure/Loss of charge protection standard on all models
- Solid Core liquid line filter drier on each circuit
- Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies
- Cooling operation up to 125 degree F ambient
- Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream
- Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers
- Slide Out Indoor fan assembly for added service convenience
- Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized
- One piece top cover and one piece base pan with drawn supply and return opening for superior water management
- Forkable base rails for easy handling and lifting
- Single point electrical connections
- Internally sloped slide out condensate pan conforms to ASHRAE 62 standards
- High performance belt drive motor with variable pitch pulleys and quick adjust belt system
- Permanently lubricated evaporator, condenser and gas heat inducer motors
- Condenser motors are internally protected, totally enclosed with shaft down design
- 2 inch filter standard with slide out design
- 24 volt control system with resettable circuit breakers
- Colored and labeled wiring

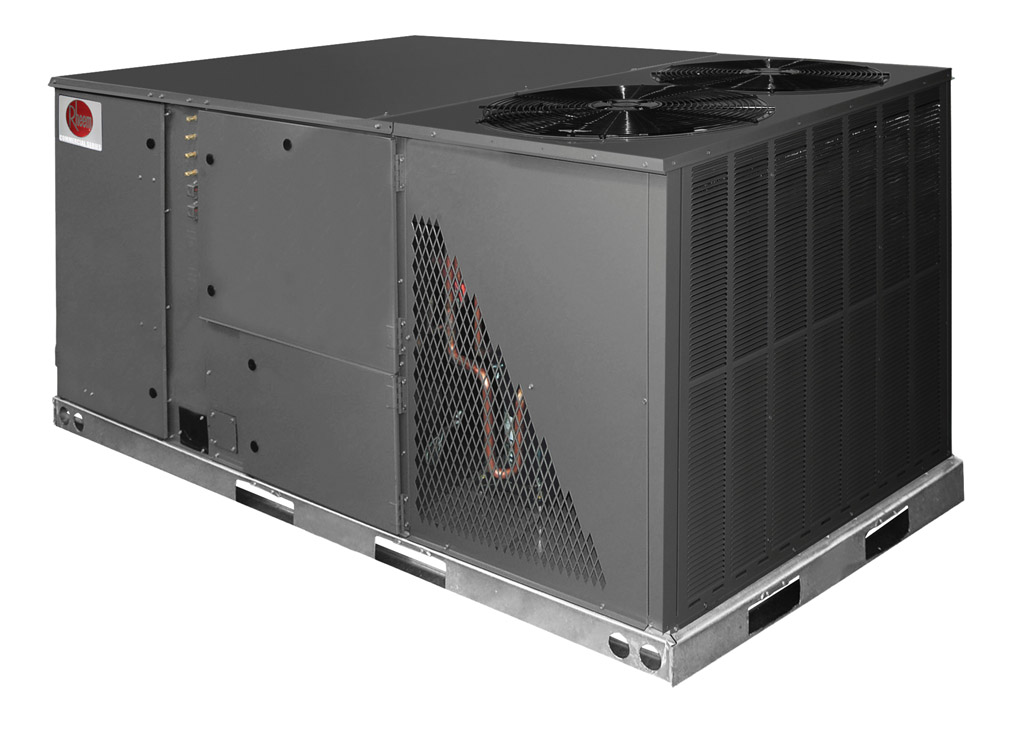

RLNL-B (6 – 12.5 Ton) Series
- RLNL-B High Efficiency Series
- Nominal Sizes 6-12.5 Tons [21.1-44.0 kW]ASHRAE 90.1-2010 Compliant Models
- 10/11 EER R410a
- 208-230 V – 3PH
- 460V – 3PH
- Cu/Al Coils, Hinged Access Doors
- -C Clear Control
